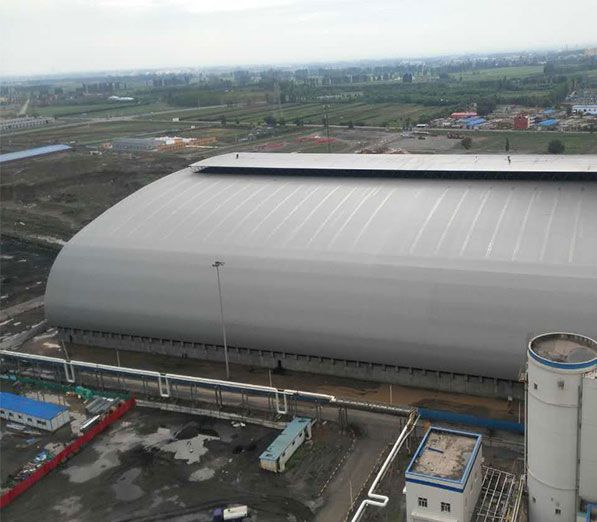

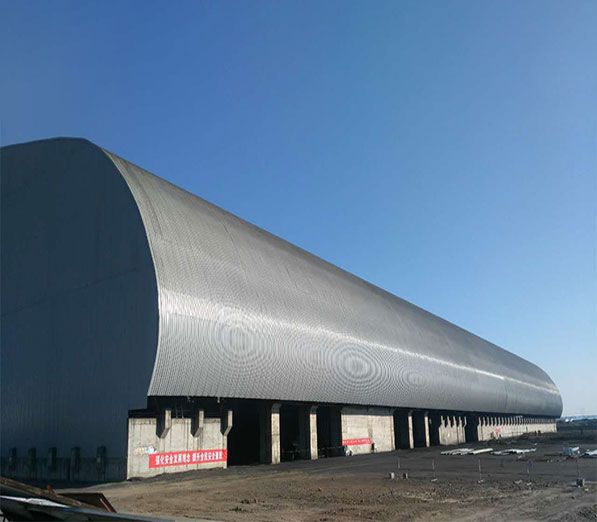

Xinjiang Hongyanchi Thermal Power Plant Coal Shed

Xinjiang Hongyanchi Thermal Power Plant Coal Shed

In recent years, with the increase in the scale of power plants, space frame structure has become one of the preferred structures for dry coal sheds in thermal power plants due to its advantages of large span, good integrity, and less steel consumption.

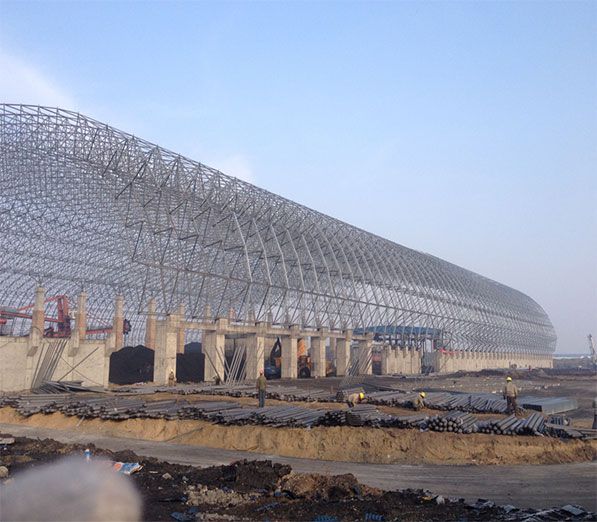

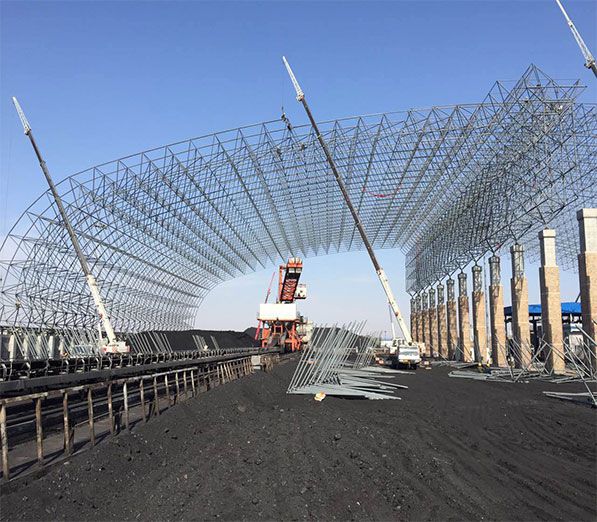

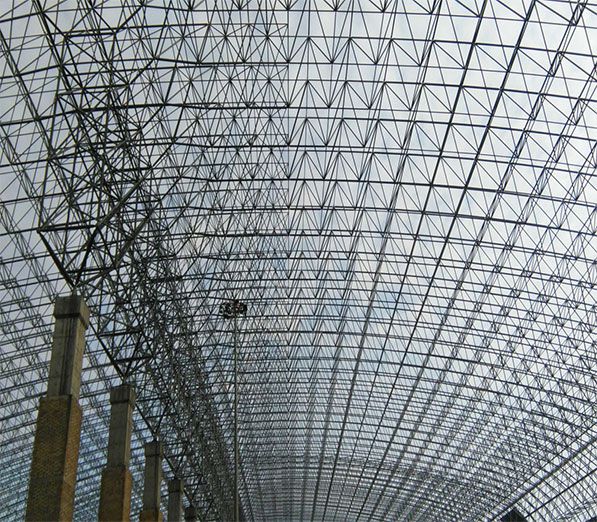

The main structure adopts a double-layer space frame with bolt-ball joints, the coal storage shed project is a bolt-ball node placed in the quadrangular cone space frame, the construction area of the arched shell space frame is about 7700m², and the construction area of the flat space frame is approximately 3900m². The 1-9 axis is a flat space frame, and the structure is sloped.
