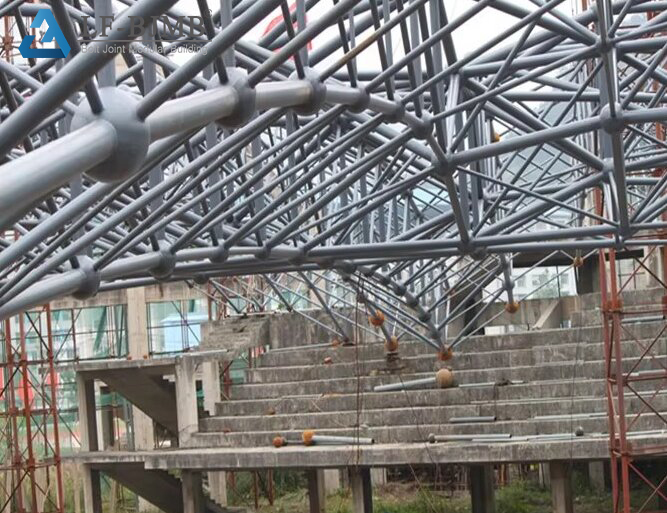

Bolted ball space frame structure

Bolted ball space frame racking is a common and effective form of structure that is usually used for the erection of sports stadiums, public places and large-scale events. The basic structure of bolted ball space frame mainly includes the following points:

Main beam and sub beam:

The main beam is the main crossbeam supporting the whole ball space frame structure, bearing the weight and external load of the ball space frame. The secondary beam is usually located below or on the side of the main beam, which is used to enhance the stability and load-bearing capacity of the structure.

Bolting:

Bolts are an important element for connecting the various components of the ball space frame, through which the main beam, sub beams and other components are firmly connected together to ensure the stability and safety of the whole structure.

Ball space frame bracket:

Bracket is the key component of bolted ball space frame, which supports the frame of the actual suspended ball space frame. It usually consists of multiple cross and longitudinal beams that form a grid-like structure for hanging and securing the ball space frame.

Ground support:

In order to enhance overall stability, ball space frames usually require ground supports. These supports can be concrete foundations, steel plate plinths, or ground bolts that support the columns or beams of the ball space frame rack by being fixed to the ground.

Anti-corrosion treatment:

Considering that bolted ball space frame racks are often placed in outdoor environments, in order to extend their service life, structural components are usually treated with anti-corrosion. This includes measures such as galvanizing, spraying antirust paint or using stainless steel materials to prevent the metal structure from the effects of oxidation and corrosion.

Assembly and Disassembly:

Bolted ball space frame racks are usually designed as structures that can be quickly assembled and disassembled for easy transportation, storage and erection. This design feature allows ball netting to be quickly deployed when needed and easily dismantled and removed after the event.

Bolted ball space frame racks provide a stable, safe and reliable support platform through sturdy bolt connections and reasonable structural design. They are widely used in sports competitions, performance stages and all kinds of large-scale activities, which satisfy the public’s demand for safe and comfortable venues and also show their flexibility advantages.

Most of the bolt ball is used in the space frame structure, the main structural characteristics are: a ball on the opening of a number of holes with internal wire, used to connect a number of rods at one point.

Bolt ball is mainly used in the field of tubeless downhole oil recovery device, casing explosion expander, tubing diameter gauge and so on. It is also applied to the articulation of rods with rods in the steel structure of space frame.

The main features are as follows:

(1) Strong adaptability, no additional node eccentricity.

(2) Avoiding a large amount of on-site welding workload.

(3) Easy transportation and installation.

(4) Many parts and components, high processing accuracy requirements.

(5) Complex process, large manufacturing costs.
