Shell is one of the biggest international oil companies in the world, it is a major manufacturer of oil, gas and petrochemical industry internationally, also is the largest retailers of auto fuel and lubricating oil.



In 2016, LF has signed a cooperation agreement with the Australian agency of shell, which marks that LF becomes the global strategic supplier of shell petrol gas station.



In the early stage, the commercial and technical teams of both sides conducted a lot of communication and negotiation on price mechanism, quality control, delivery performance, safety supply and so on, the final agreement reached after much effort from both sides.



LF will keep dedicating itself to product quality, service, and advantage in the research and development stage.



Meanwhile, we will keep focusing on the business development of shell and striving to become a good strategic supplier of them. Cooperating with each other and facing the global energy market, urge us to enhance competitiveness to achieve a win-win pattern.

Product specifications

Structure Type:  Light Steel

Application:  Petrol Gas Station Canopy

Design Standard:  ASCE

Size:  10mx9mx5m

Wind Zone: 225kph

Seismic Zone:  4(Z=0.4)

Certificates:  ISO, CE, SGS

Steel Material:  Q355B

Surface Treatment:  Hot dip galvanizing and paint.

Roof panel:  Color steel sheet.

Shipping:  30 working days after designing drawings are confirmed with a signature

Installation:  Supply supervision

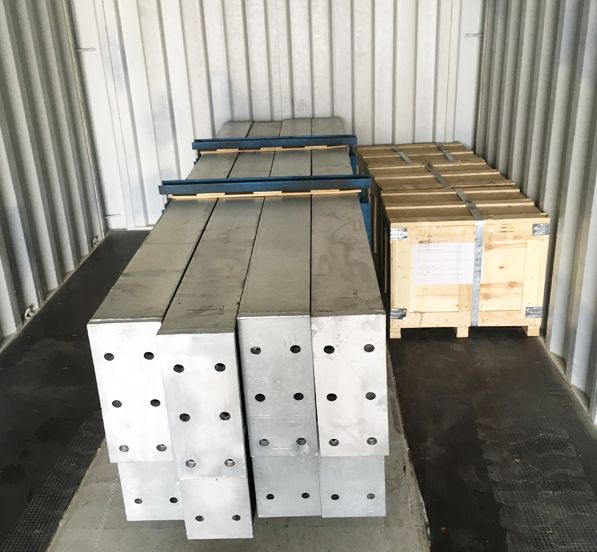

Packaging Details:  Use a packing rack for large steel components, small components are putted into a wooden case.

Design life:  50 years

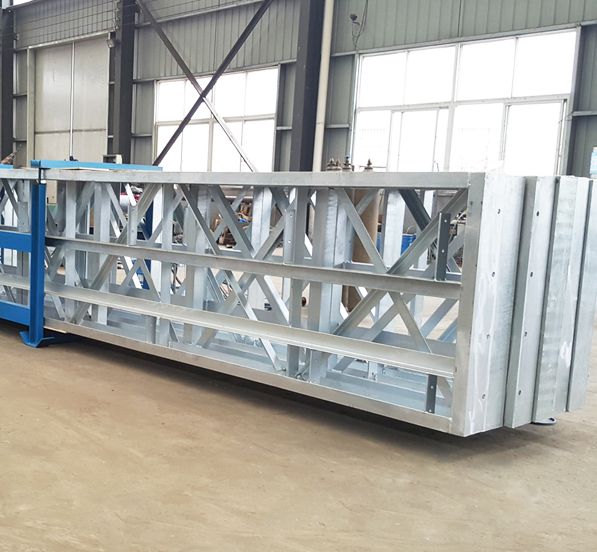

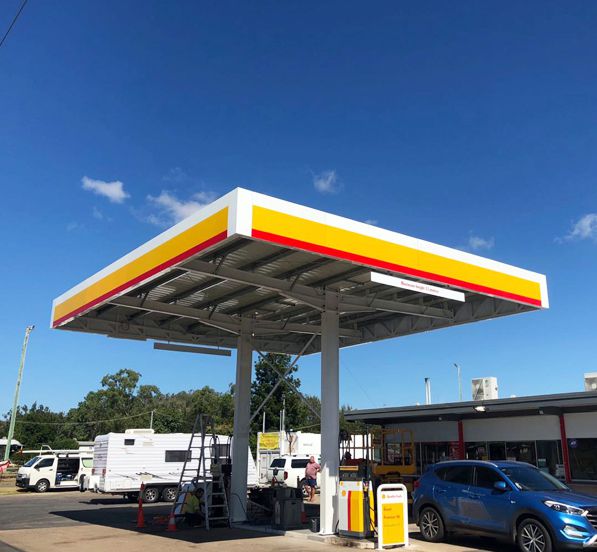

The gas station canopy is a tall space tetrahedron held up by 4 pillars. the development of the structural form of the gas station canopy has experienced the development process from ordinary reinforced concrete beam-slab structure to steel structure (space frame, truss), and the steel structure has gradually become the main structural form of the gas station canopy,gas station canopy panels adopt anti-wind aluminum buckle, aluminum veneer, rounded aluminum profile, etc。



Steel structure gas station advantage

(1) The strength-to-mass ratio and strength of steel is higher.  Compared with wood, masonry, concrete, and so on, although its density is larger, its strength-mass ratio and strength are still much higher than the above materials.  Under the same conditions, steel members have low dead weight and small cross-sections, so they are especially suitable for large-span structures.



(2) Uniform steel material, good performance, high reliability.  At the same time, the internal structure of steel is uniform, which is in line with the ideal isotropic elastic-plastic material and can well simulate and reflect the actual working conditions of different steel structures.  In addition, steel processing in the factory, with strict process quality control, and high reliability.



(3) The construction is convenient and the construction period is shortened.  Due to the materials are modern professional chemical plants into batch production of finished materials, high precision, good processing performance, easy to spot joint hoisting, and high degree of industrial production, can effectively shorten the construction period.



(4) good ductility, and strong earthquake resistance.  Due to the advantages of good plasticity and toughness of materials, high strength, soft structural system, and lightweight structure, when the earthquake occurs, the structure has strong energy dissipation capacity, small earthquake effect, and small damage, to have strong seismic performance.



(5) The space frame, truss joints, and rods are convenient for commercialization and standardized production, which not only improves production efficiency but also promotes novel and beautiful space frame architectural shapes.

More information we need

IF you are interested in our steel structure gas station and would like us to get a quotation for the gas station canopy construction cost , and if you don’t have a gas station structure design,  you want us to do the gas station design drawings for you, please give me the following information:



(1)Dimension: Length, width, height, eave height, roof pitch, etc.



(2)Doors and windows: Dimension, quantity, position to put them.



(3)Local climate: Wind speed, snow load, etc.



(4)Insulation material: Sandwich panel or steel sheet.



(5)Crane beam: Do you need a crane beam inside the steel structure? And it’s capacity.



(6)Is there any materials that are not allowed to import into the country where the structure is planning to use?



(7)Any requirements let me know we will do our best. Certainly, if you can provide us the drawing which you need is the best.
